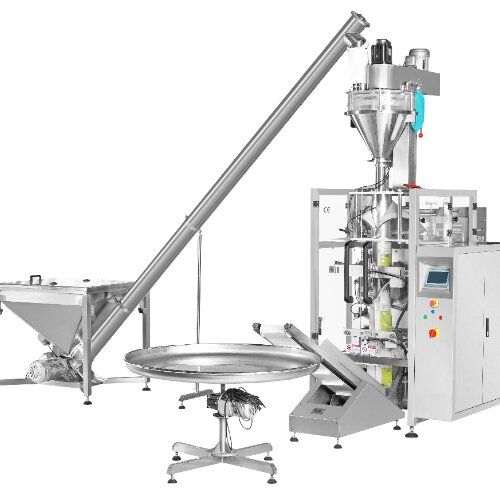

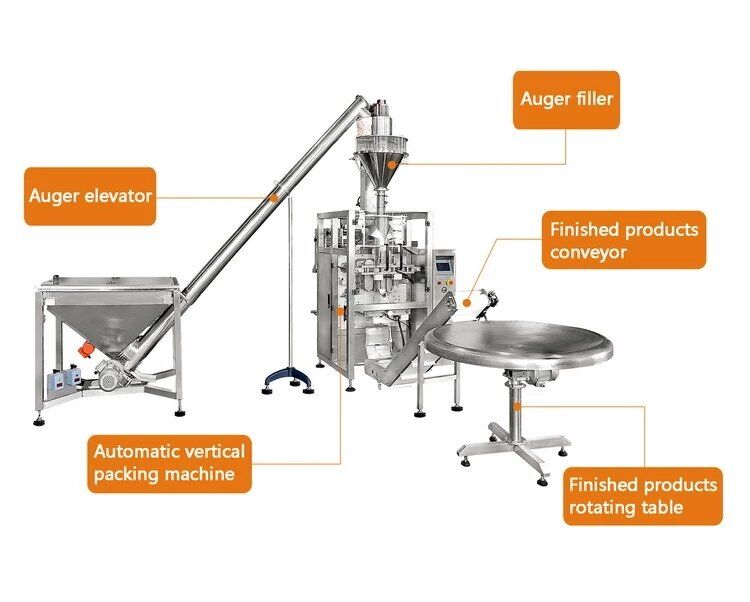

Vertical packaging machine system with auger filling machine
It is suitable for powder materials with easy flow or poor fluidity, such as milk powder, soybean milk powder, coffee powder, starch, flour, soybean powder, mung bean powder and washing powder.
Additional information
| Application | milk powder, soybean milk powder, coffee powder, starch, flour, soybean powder, mung bean powder and washing powder. |
|---|---|
| Filling type | Auger filling |
| Conveying type | screw conveying |
| Packaging type | vertical packaging machine |
| System speed | 5-60 bag/min |
| Bag style | pillow, gussted, flat bottom bag etc |
| Bag width (mm) | (L)80-200mm / (W)80-150mm on 320model |
| HMI | 7/10inch |
| Material | 304SS |
| Voltage | 220V 50Hz |
Application:
It is suitable for powder materials with easy flow or poor fluidity, such as milk powder, soybean milk powder, coffee powder, starch, flour, soybean powder, mung bean powder and washing powder.
Special Features:
- Simple structure, reliable operation, simple and convenient maintenance…
- The rotary screw feeding, independent stirring system, servo code and microcomputer control technology are the biggest selling points of the machine.
- With the combination of coding and control, it has the characteristics of sensitive movement, low noise, stability, reliability, fast measurement speed, high precision, and also has the measurement times display.
- Used for measuring powder materials with easy flow or poor fluidity, such as milk powder, soybean milk powder, coffee powder, starch, flour, soybean powder, mung bean powder and washing powder.

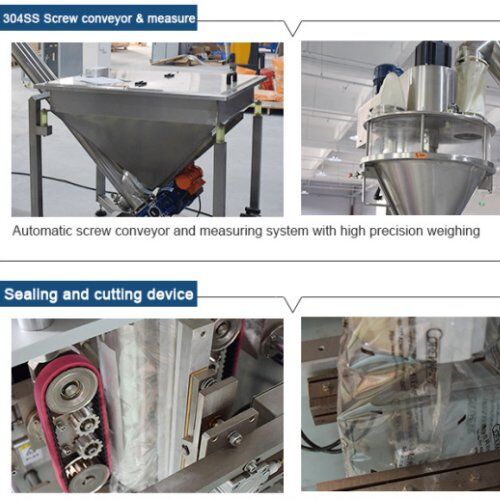

- The machine can complete metering, filling and nitrogen filling, etc., and the servo motor drives the screw to rotate to achieve the purpose of metering and filling materials.
- Stainless steel open-type material box is easy to clean and conform to the safety and health management requirements of enterprises.
