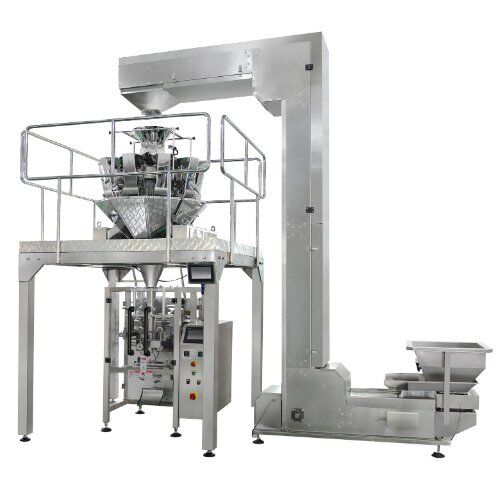

Vertical packaging machine system with multihead weigher
Suitable for packaging many different kinds of products; such as puffy food, shrimp roll, peanut, popcorn, cornmeal, dried fruit, seed, small hardware,dumplings, vegetable, fruits and sugar etc.which shape is roll, slice and granule.
Additional information
| Application | Suitable for packaging many different kinds of products; such as puffy food, shrimp roll, peanut, popcorn, cornmeal, dried fruit |
|---|---|
| Filling type | multihead weigher |
| Conveying type | bucket elevator |
| Packaging type | vertical packaging machine |
| System speed | 35-70bpm |
| Bag style | pillow, gussted, flat bottom bag etc |
| Max film width(mm) | 120-320 mm |
| Bag width (mm) | 50-150 mm |
| Bag length (mm) | 50-150 mm |
| HMI | 7/10inch |
| Material | 304SS |
| Voltage | 220V 50Hz |
Application:
Suitable for packaging many different kinds of products; such as puffy food, shrimp roll, peanut, popcorn, cornmeal, dried fruit, seed, small hardware,dumplings, vegetable, fruits and sugar etc.which shape is roll, slice and granule.
Special Features:
- PLC control with stable reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing,cutting , finished in one operation.
- Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
- Film-pulling with servo motor belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.
- External film releasing mechanism: simpler and easier installation of packing film.
- Adjustment of bag deviation just needed to be controlled by the touch screen. Operation is very simple .
- Close down type mechanism , defending powder into inside of machine.
