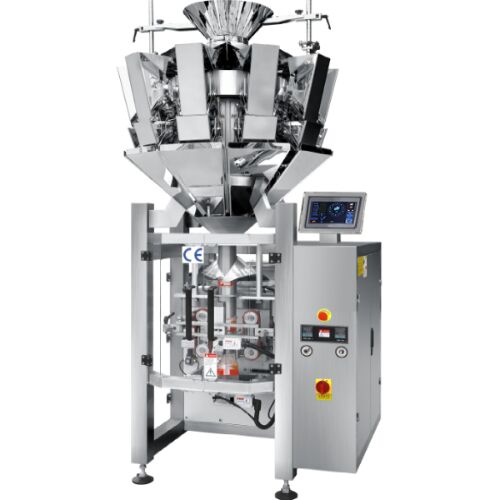

EP-R14H 0.8/1.6L vffs & multihead weigher combined
It is suitable for weighing ofgranule, slice shape such as cereal,pasta, candy,seed,chips,coffeebeans,nut,puffy food, combined unit,save space and cost
Additional information
| Application | small-sized / dosed granular products, such as prepared herbal medicine, tea, seeds |
|---|---|
| Weighing head | 14Head |
| Weighing speed | 100bpm |
| Hopper Volume | 0.8/1.6 |
| Accuracy | 0.5-2gr |
| Packing speed | 100bpm |
| Bag style | pillow |
| Bag length (mm) | 420mm |
| Bag width (mm) | 210 |
| Voltage | 220V 50Hz |
Main Features:
- Compact design,suitable fo limited height within 3000mm
- Save your cost and beyond yourquality expect; and accurate
- Combination design,one HMI control on both machines, easy operation;
- Widely used on different kinds products customized as your special request
Machine layout:
- SS#304 frame .
- Max film width: 420mm.
- Maxspeed: 100bpm(empty bags).
- Packing Material: POPP/CPP.POPP/VMCPP. CPP/PE OPP/Met will be added.
- Main parts. Mitsubishi PLC Panasonic servo system 2 sets AlRTAC pneumatic parts Banner electronic photo sensor
