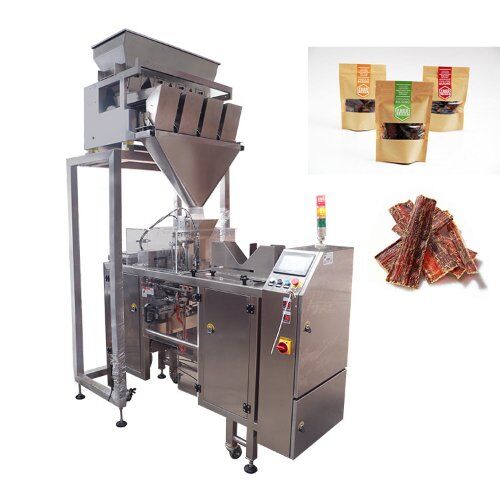

Doypack packaing system with linear weigher

Doypack machine is suitable for all kinds of the premade bags, such as stand up pouch, zipper bag, box pouch, kraft paper bags, corner spout bags and so on

Additional information

Application

Doypack machine is suitable for all kinds of the premade bags, such as stand up pouch, zipper bag, box pouch, kraft paper bags, corner spout bags and so on

Filling type

linear weigher

Filling Range

10-2000g

System speed

max30bpm

Packaging type

doyapck machine

Bag Size

Bag Length:130-300mm
Bag Width:130-280mm

Packing Speed

max 30 Bags/min(depended on the product and filling weight)

Package Accuracy

Error≤±1%

Voltage

220V 50Hz

Total Power

1kw

Application:

Doypack machine is suitable for all kinds of the premade bags, such as stand up pouch, zipper bag, box pouch, kraft paper bags, corner spout bags and so on

Besides, by connecting with different weighing equipments, the packing system can handle various products, such as powder, snacks, dried vegetable or fruit, puffed food, liquid sauce, beverage, etc



Special Features:

  • 1. Easy to operate,adopt advanced PLC  mate with touch screen and electric control system, the man-machine interface is friendly.
  • Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
  •  Safety device: Machine stop at abnormal air pressure, heater disconnection alarm
  • The width of the bags could be adjusted by electrical motor.
  • It matches with the glass safety door. The machine will stop working when you open the door. So that it could protect the safety of operators. At the same time, it could prevent dust.
  • The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification
  • With different feeders changed to pack solid, liquid, thick liquid ,powder and so on
  • The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE , PP and so on Preformed bag made by film and paper.
